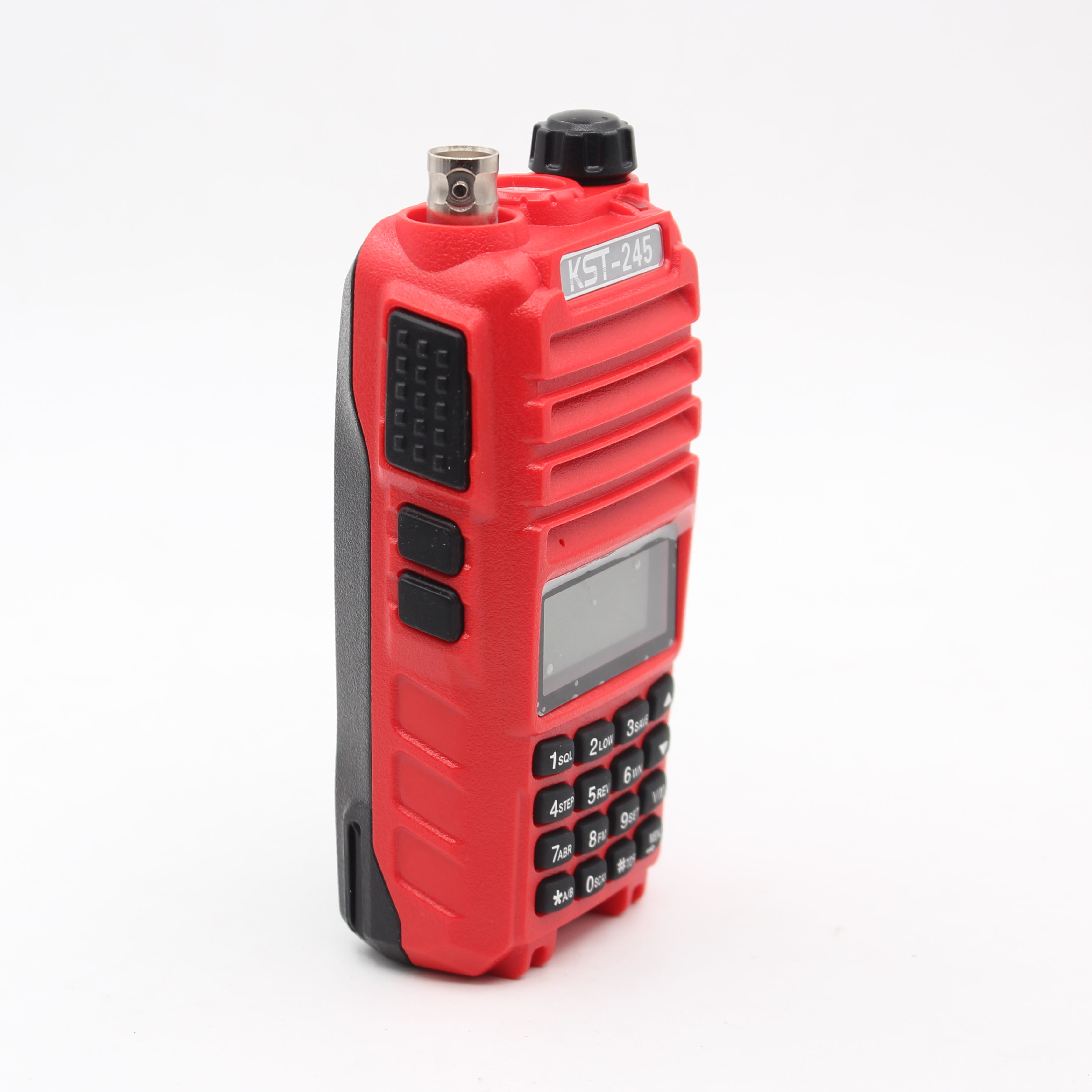

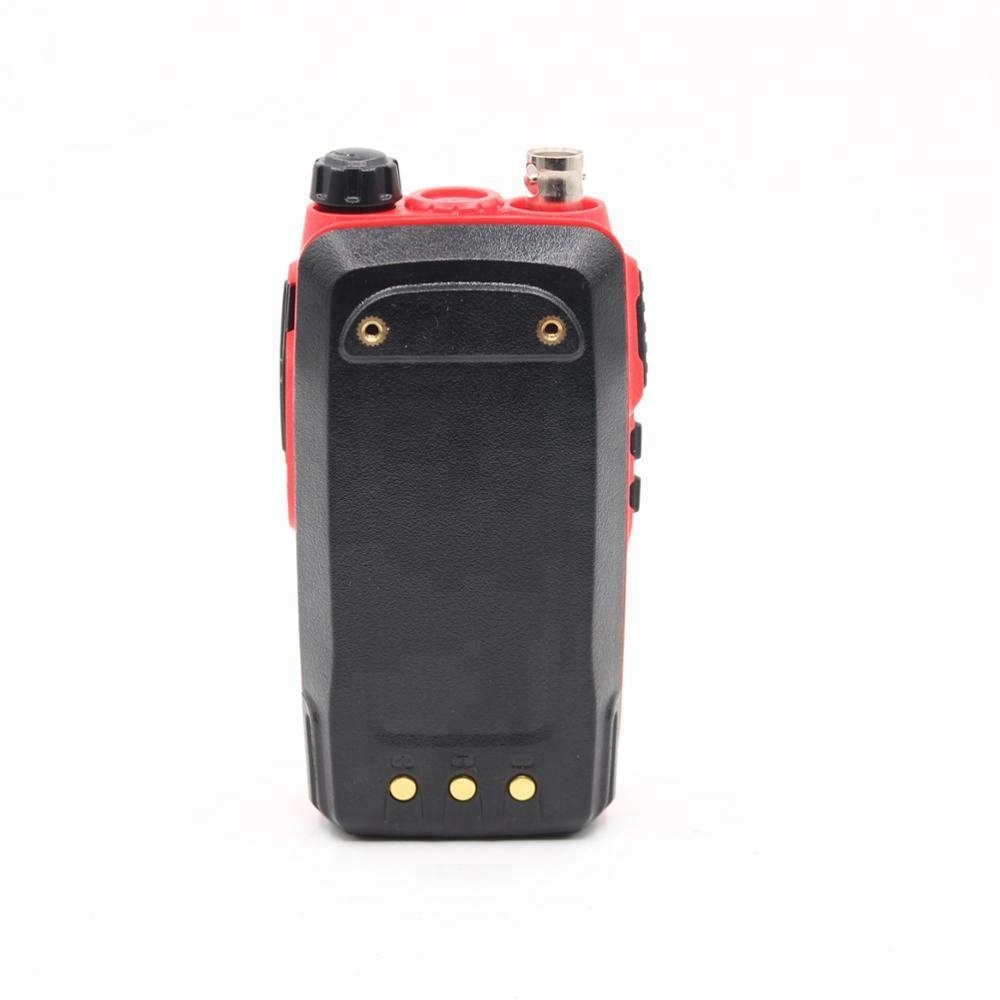

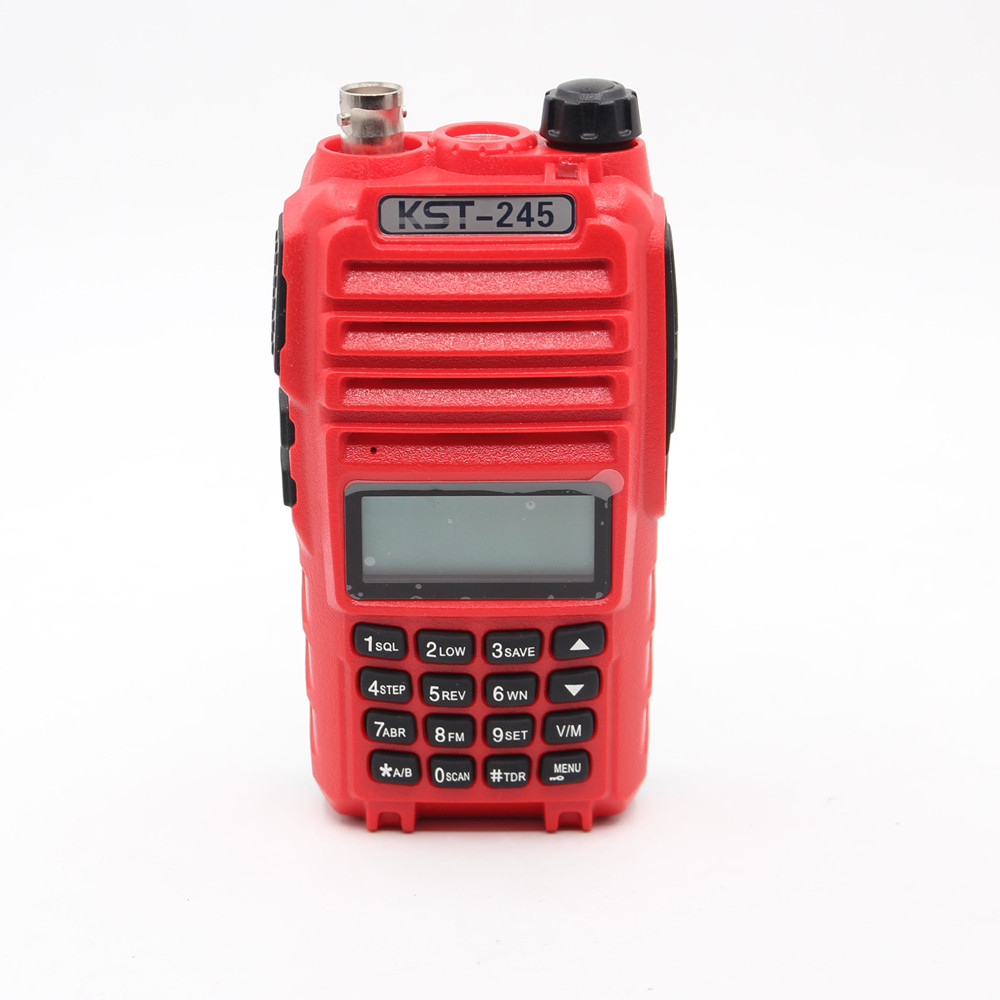

KST-245 CB Radio 245-246MHz Short Business Radio SBR Walkie Talkie with 80 Channels for Thailand Bangladesh License Free CP246
KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.
- PRODUCT DETAILS
Product Features：
1.Frequency Range: 245-246MHz
2. 80 Memory Channels, Wide Band Coverage
3.RF Power: 5W/ 1W/ 0.5W
4.VOX & TOT Functions
5.Group Calls
6.Calling Remind
7.Emergency Alert
8.Chinese / English Voice Prompt
9.Busy Channel Lock-Out(BCL)
10.CTCSS /DCS
11.Monitor; 9 Squelch Levels
12.Scan CB Radio
13.Channel/Frequency Mode Opptional
14.Channel Name Edit and Display
15.Key Pad Operation
16.Large LCD Display
17.High Capacity Li-ion Battery
18.High / Low Power Selectable
19.Power Saving; Low Power Alert
20.Keypad Lock
21.Wire Clone Function
22.Programmable by Computer/Keypad
23.Work with Repeater, Offset & Reverse Frequency
Technical Specifications：
| General Specification | |
| Model No. | KST-245 |
| Frequency Range | VHF245-246MHz |
| Operated Voltage | 7.4V CB Radio |
| Battery Capacity | 2200mAh(Li-ion Battery) |
| Storage Channel | 80CH |
| Dimension | 100x 58x 34mm |
| Weight | 200g (Include Battery & Antenna ) |
| Transmitter | |
| Channel Spacing | 5, 10, 12.5, 20, 25,30, 50kHz |
| Frequency Stability(-20℃, +60℃, +25℃) | ±5PPM |
| Output Power | 5W/ 1W |
| Modulation Limited | ≤5kHz |
| ≤5kHz | |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 12.5KHz | |
| Conducted/radiated emission | -36dBm ＜ 1GHz |
| -30dBm ＜ 1GHz & ＜4GHz | |
| Adjacent Channel Power | ≥65dB |
| ≥65dB | |
| Audio Response | +1, -3dbB |
| Adudio Distortion | 3% |
| FM Modulation | 12.5KHz: 11KΦF3E |
| 25KHz: 16KΦF3E | |
| 4FSK Digital Modulation | 12.5KHz only data: 7K60FXD |
| 12.5KHz data and audio:7K60FXE | |
| Max Fr. Deviation | ≤5kHz |
| Occupied Bandwidth | ≤16KHz |
| Receiver | |
| Channel Spacing | 12.5KHz/25KHz/6.25KHz(DPMR) |
| Frequency Stability(-20℃, +60℃, +25℃) | ±1.5ppm |
| Analog Sensibility | 0.25μV(12dB SINAD) |
| 0.3μV(20dB SINAD) | |
| Digital Sensibility | 5% BER: 0.3μV |
| Intermodulation | 65 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5KHz |
| 60 dB @ 25KHz | |
| Spurious Rejection | 65dB |
| Rated Audio Power Output | 500mW |
| Rated Audio Distortion | ≤3% |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 25KHz | |
| Adudio Response | +1, -3dbB |
| Spurious Emiossion | -57 dBm |
KST is a professional DMR Two way radio manufacturer more than 10 Years, We are seeking distributor globally!

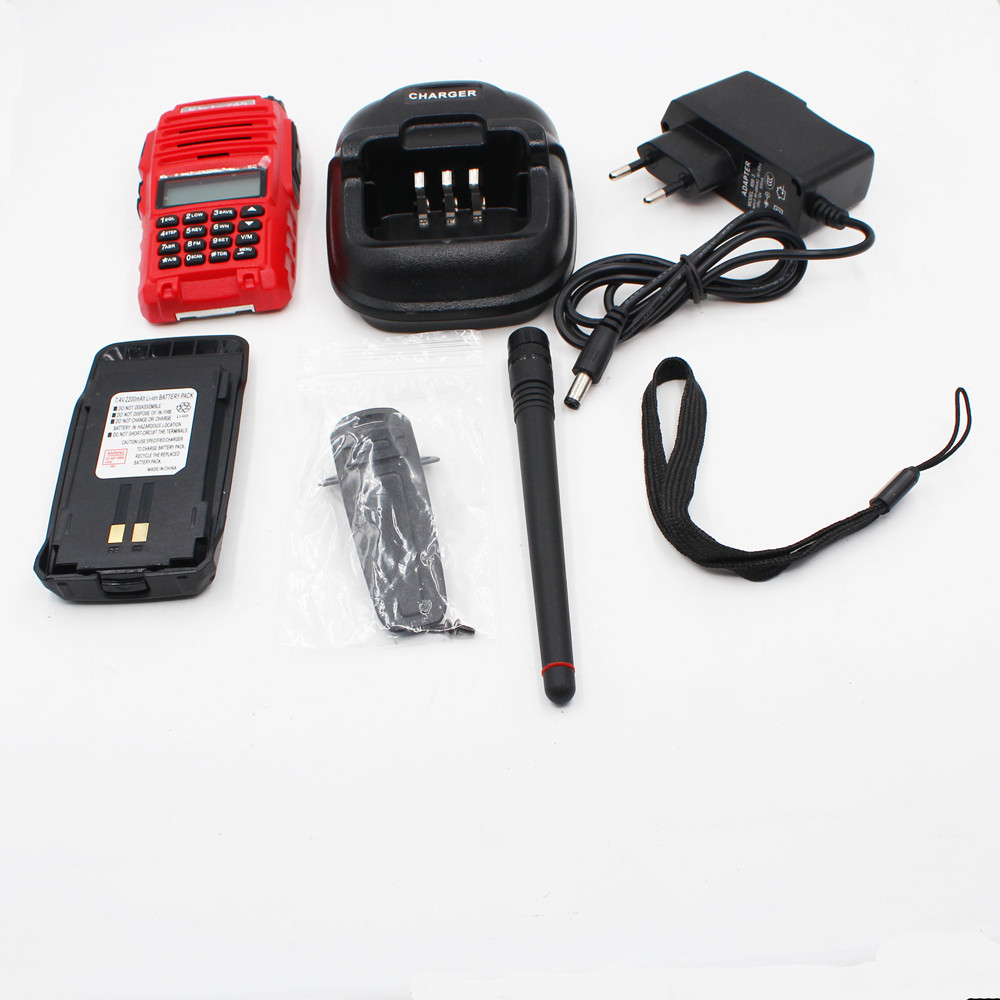

Products Show：
